Alloy Steel Hydraulic Plunger for Cold Chamber Die Casting Machine

Share to:

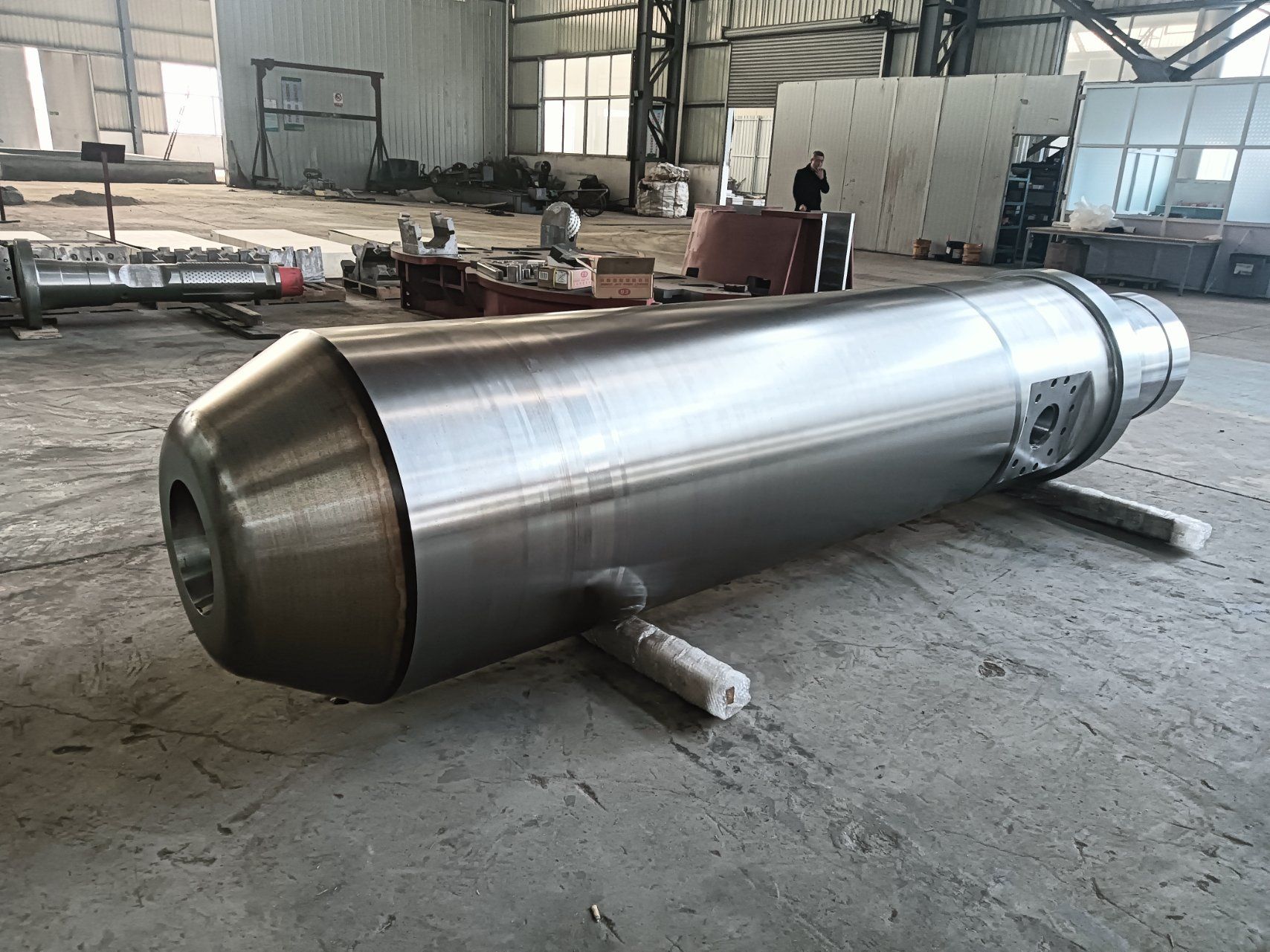

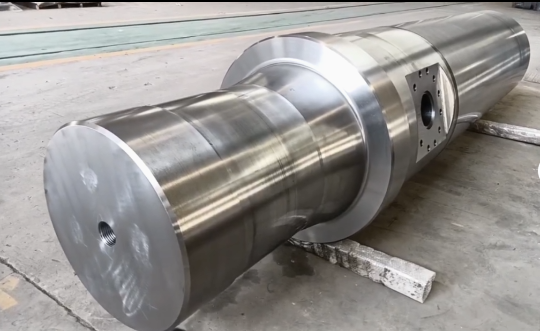

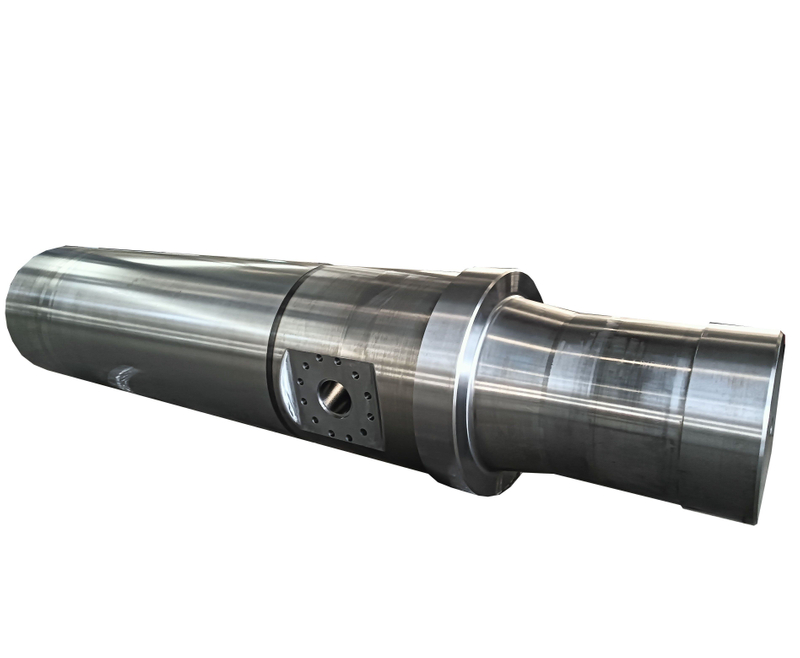

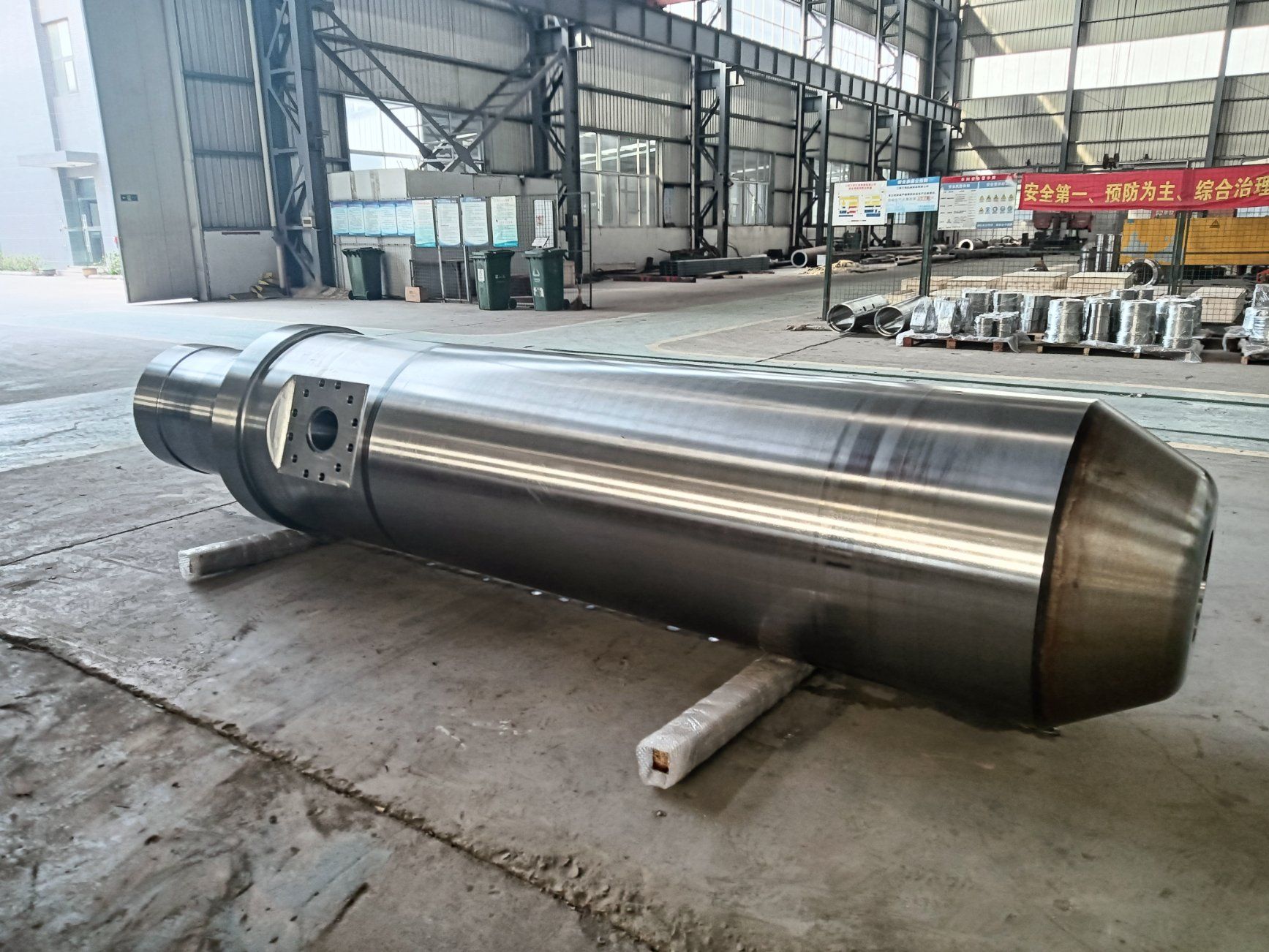

High Speed Alloy Steel Hydraulic Plunger for Cold Chamber Die Casting Machine

Forged hydraulic plunger is the core transmission component in hydraulic systems. It converts hydraulic energy into mechanical energy by reciprocating within the hydraulic cylinder, thereby achieving force transmission and motion control.

Availability:

Quantity:



Inquire Add to Basket

Model:
FORGE-P-OD280*L3200
Brand:
ETERNAL

Product Description

Product Description

Size:OD280*L3200

Material:Alloy Steel

Heat treatment:Quenching and Tempering

Surface treatment:surface quenching,electroplating,2Cr13-4Cr13 stainless steel overlay welding

Surface Hardness:HRC50-60

Depth of Quencheded Layer:2-4mm

Thickness of Electroplated Layer:20-50um

Production Capacity:500 tons per month

Transport Package:Steel Pallet

Service:Customized

Warranty Period:One year

Application

Hydraulic cylinders such as die casting machine,etc

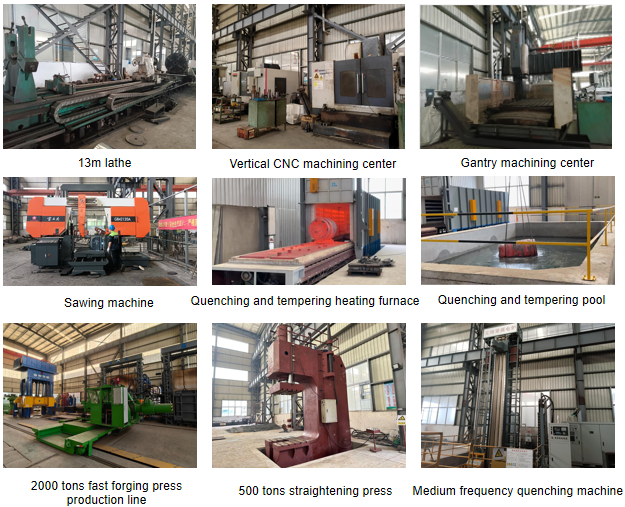

Production Procedure

Forging, Rough machining, Heat treatment:normalizing+quenching+tempering, Final processing

Feature

1. Choose alloy steel forging material.

2. Its material has high strength, high hardness, and high wear resistance.

3.Through quenching and tempering heat treatment.

4. CNC machining and surface grinding.

5. High frequency surface hardening ,electroplating,2Cr13-4Cr13 stainless steel overlay welding.

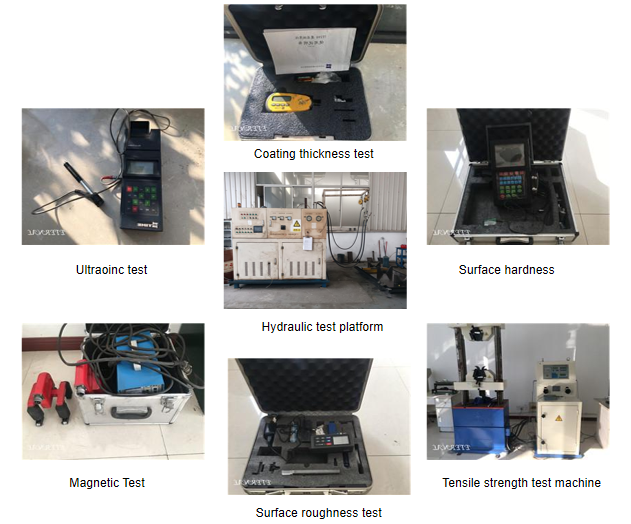

6. Carry out 100% UT/MT inspection before shipment.

Equipment

Cold Chamber Die Casting Machine Plunger Die Casting Machine Plunger Hydraulic Plunger
